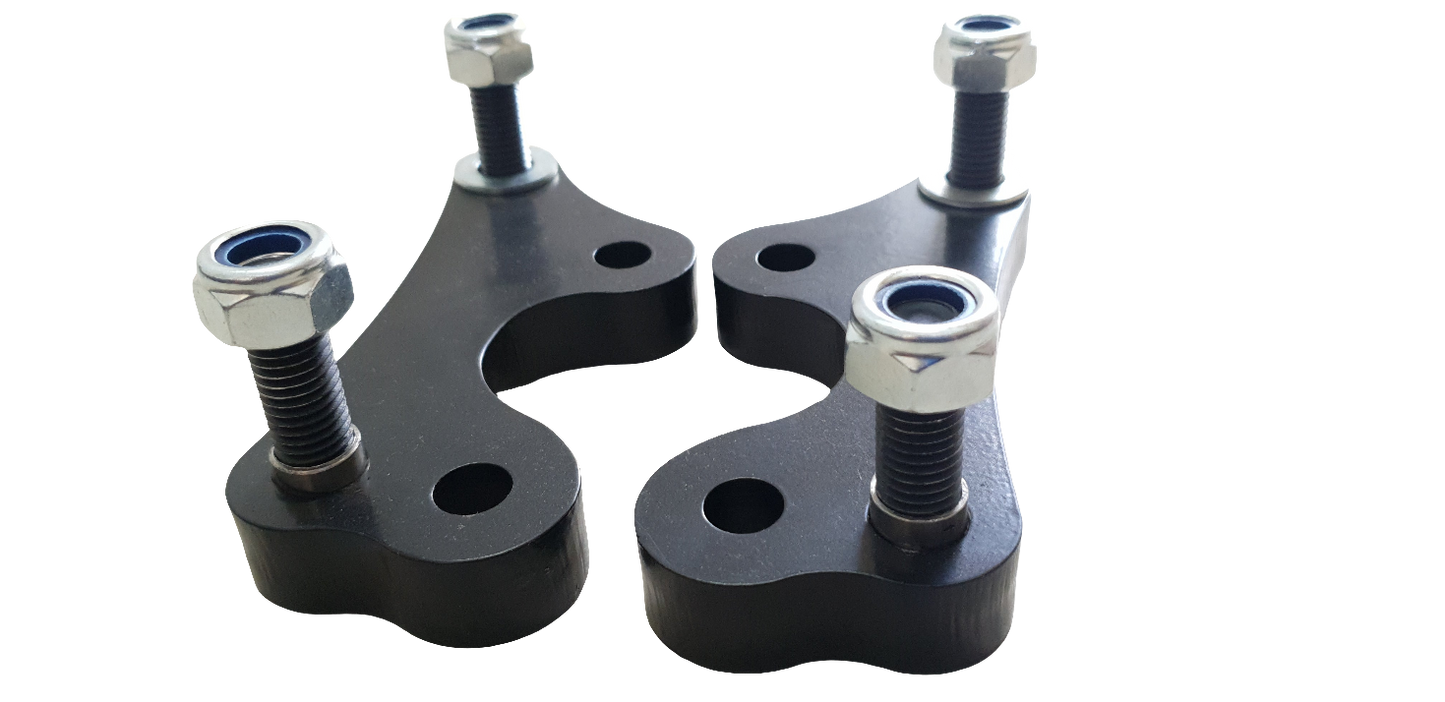

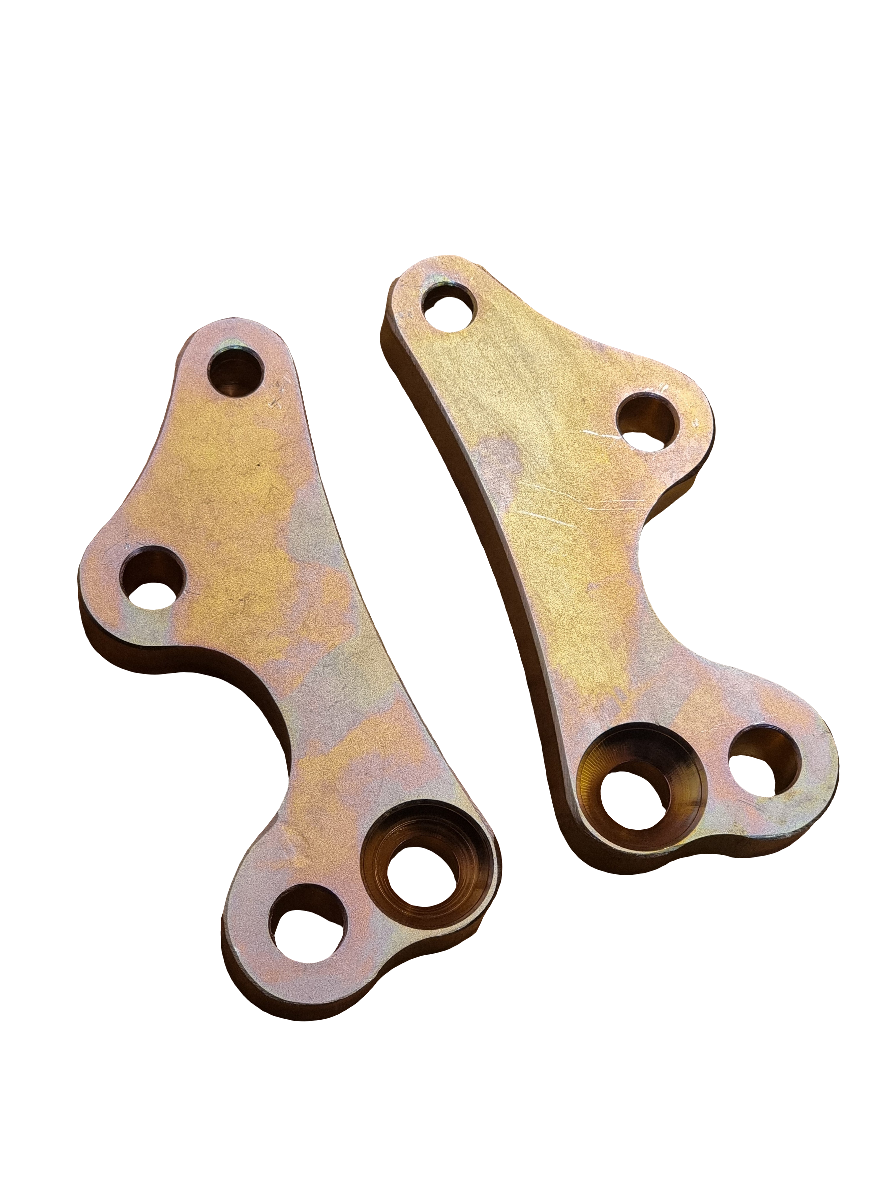

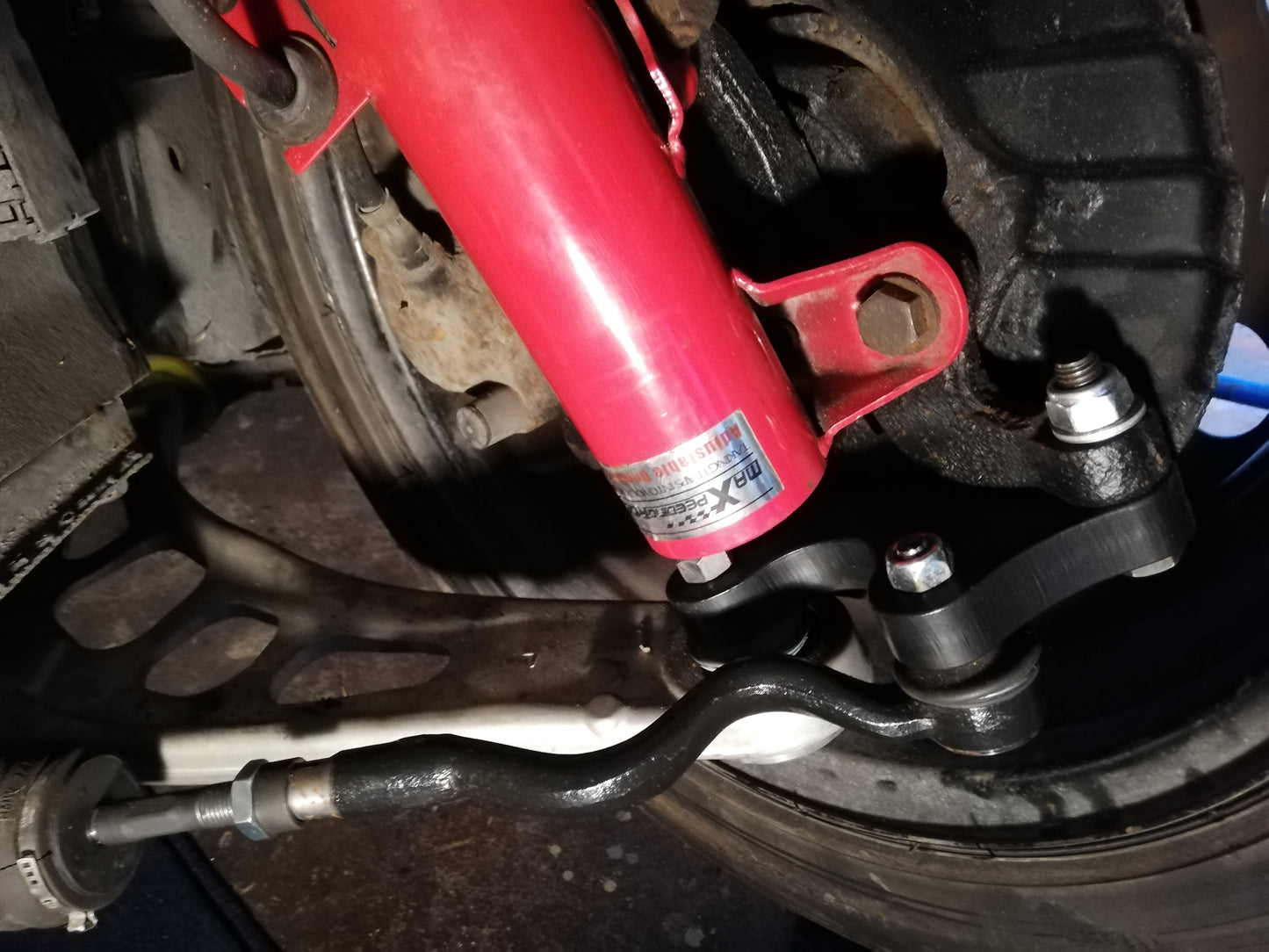

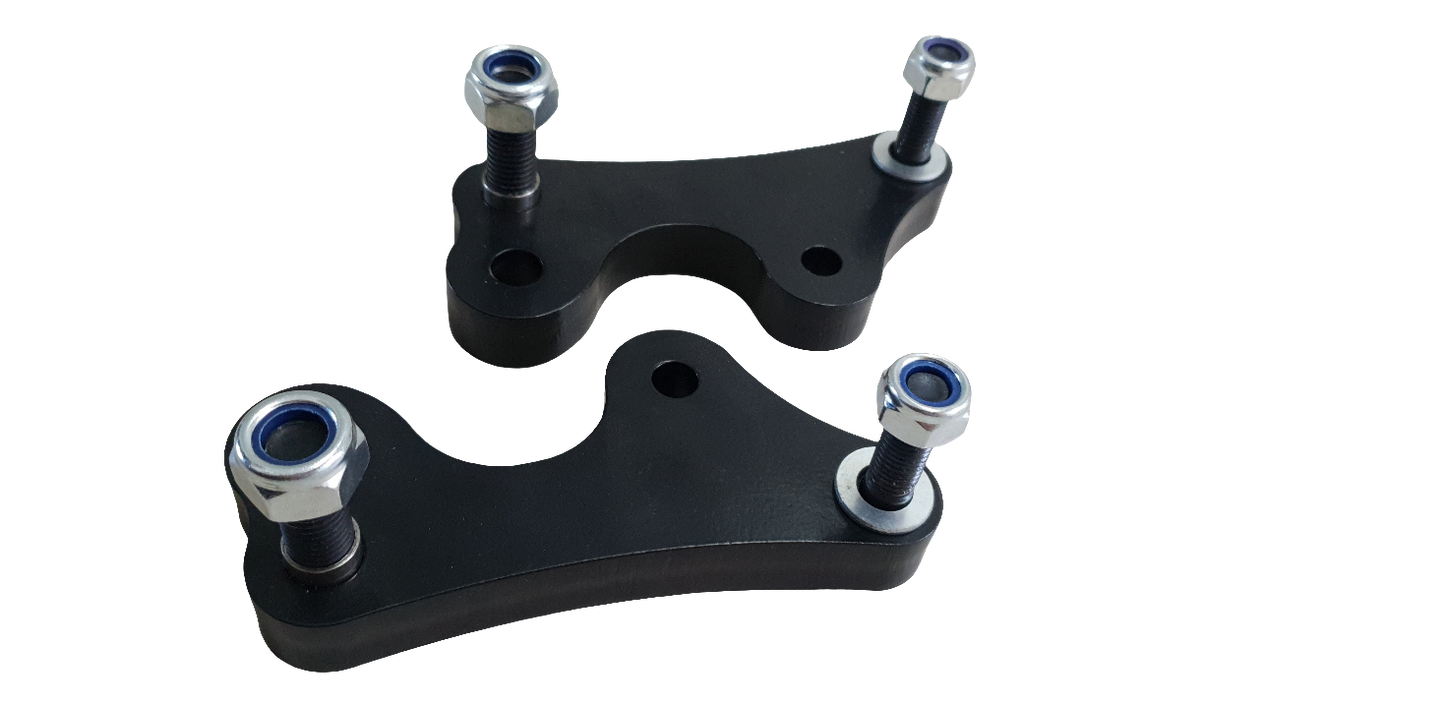

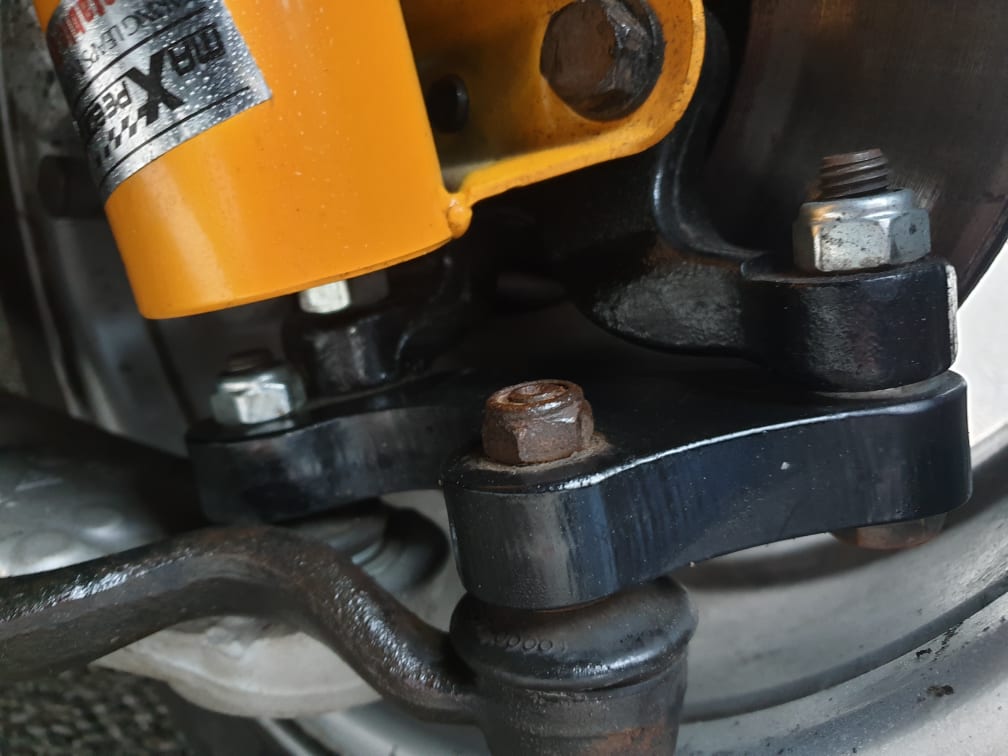

E36 knuckle adapter ( lock kit )

4 hole knuckle adapter is a bolt on solution for the e36 chassis. Developed for a wide range of setups.

Low cost, high performance, competiton proven and also streetable.

Features:

30mm track width extension per side
20mm rollcenter correction
Ackermann curve improvement

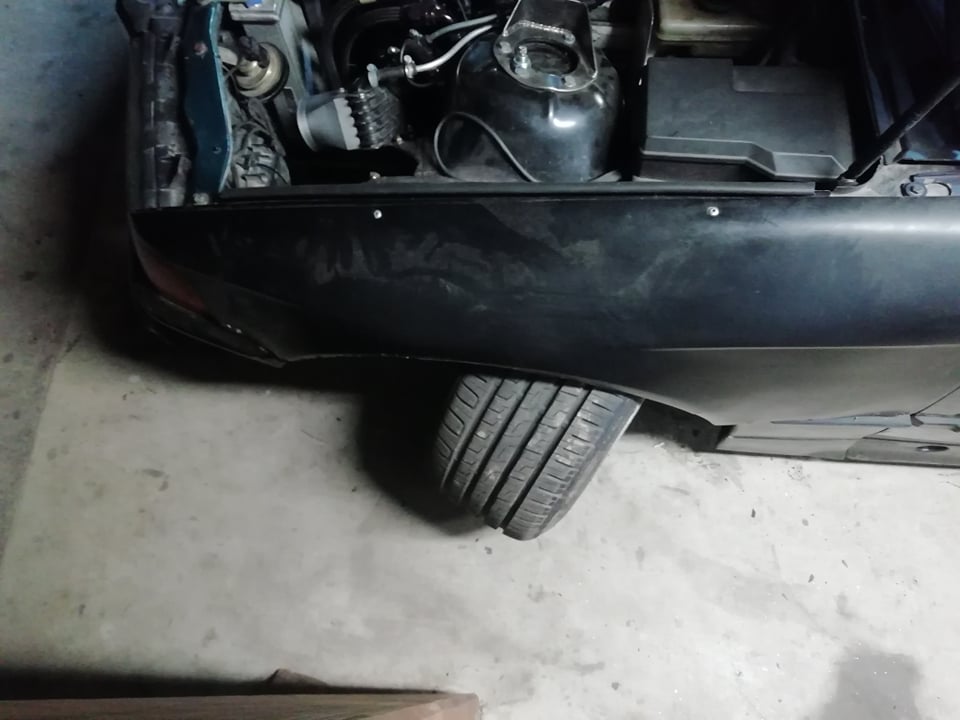

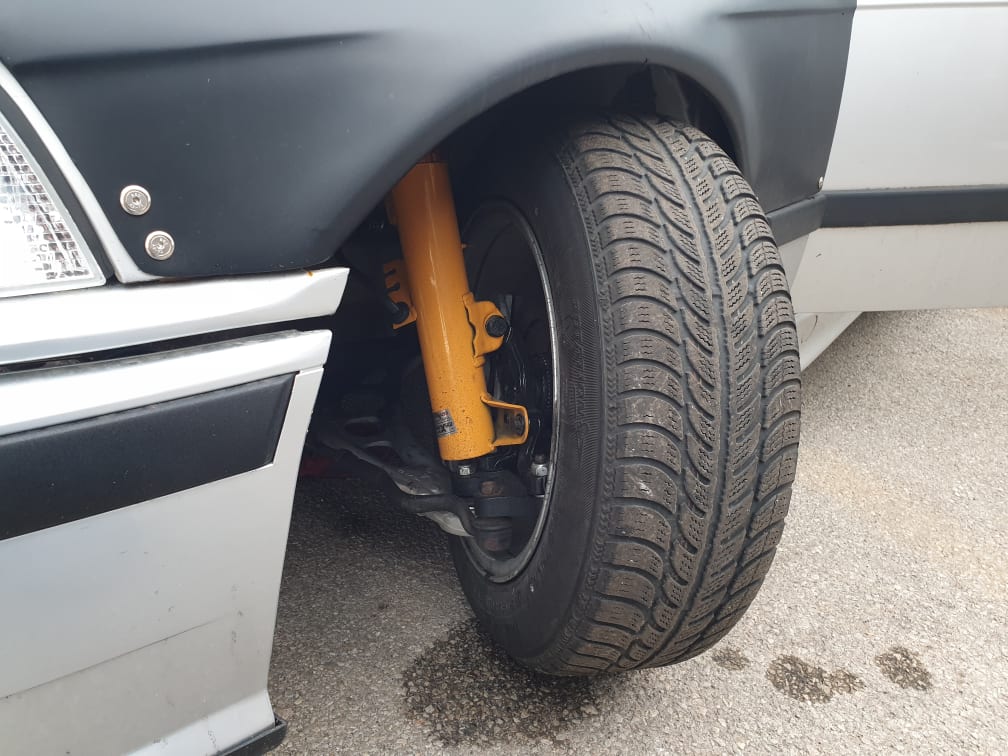

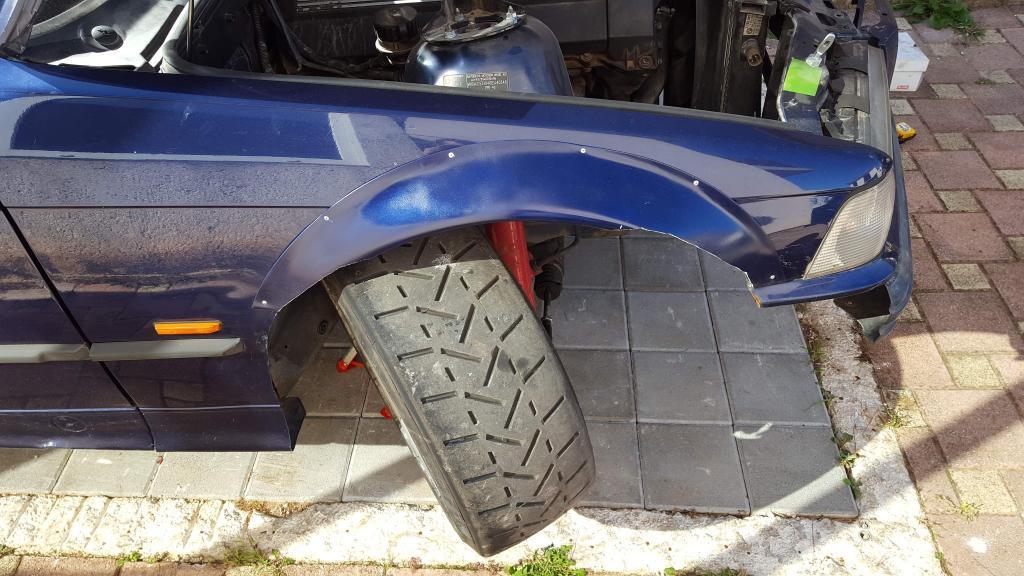

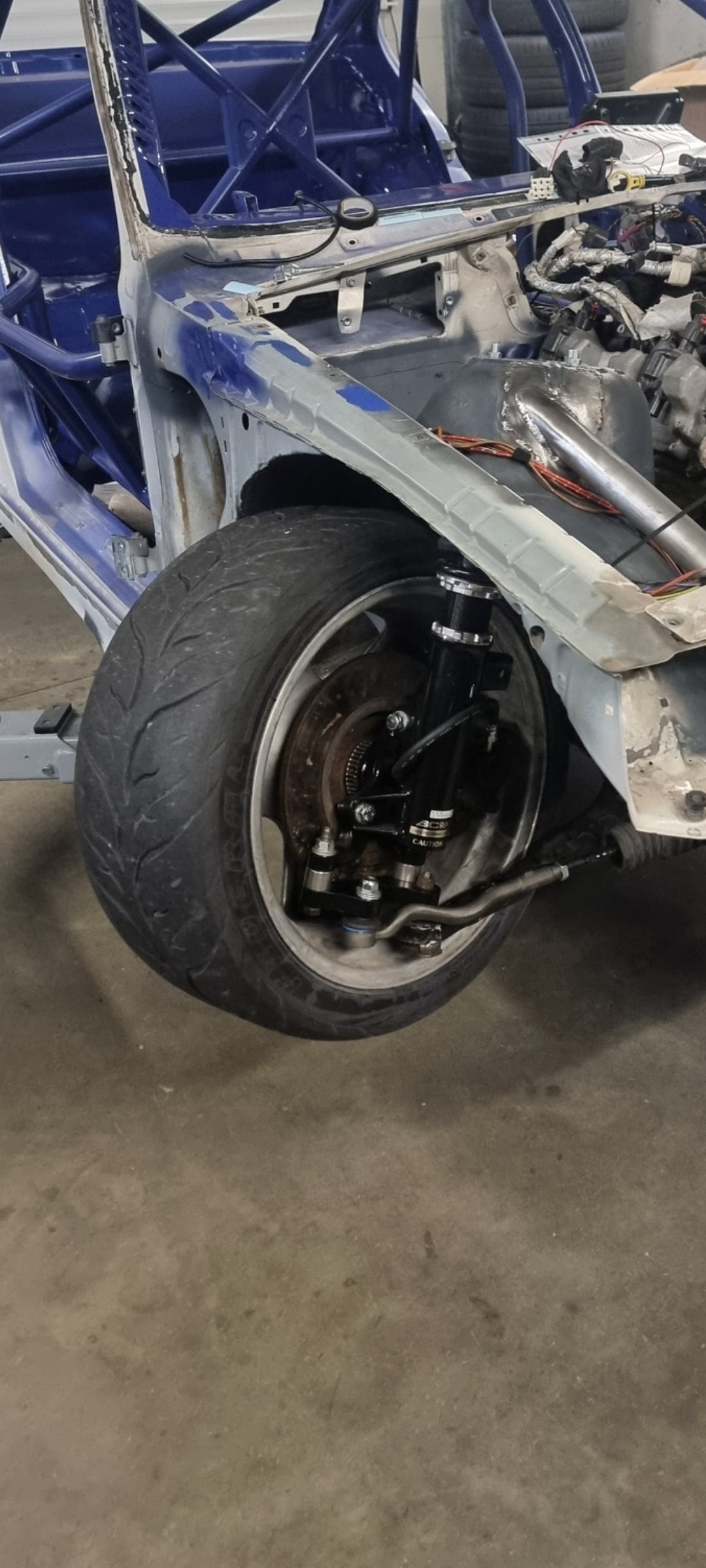

Up to 60° angle!

***use rack travel limiters to avoid sliding tires on chassis due to big angle***

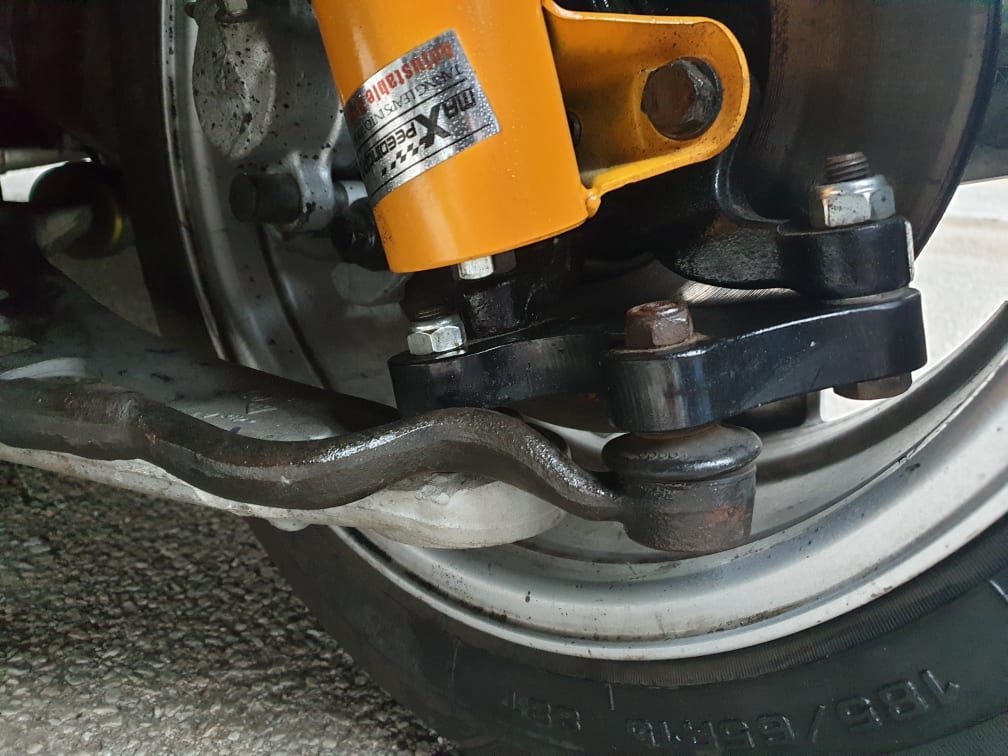

- Uses oem tierods

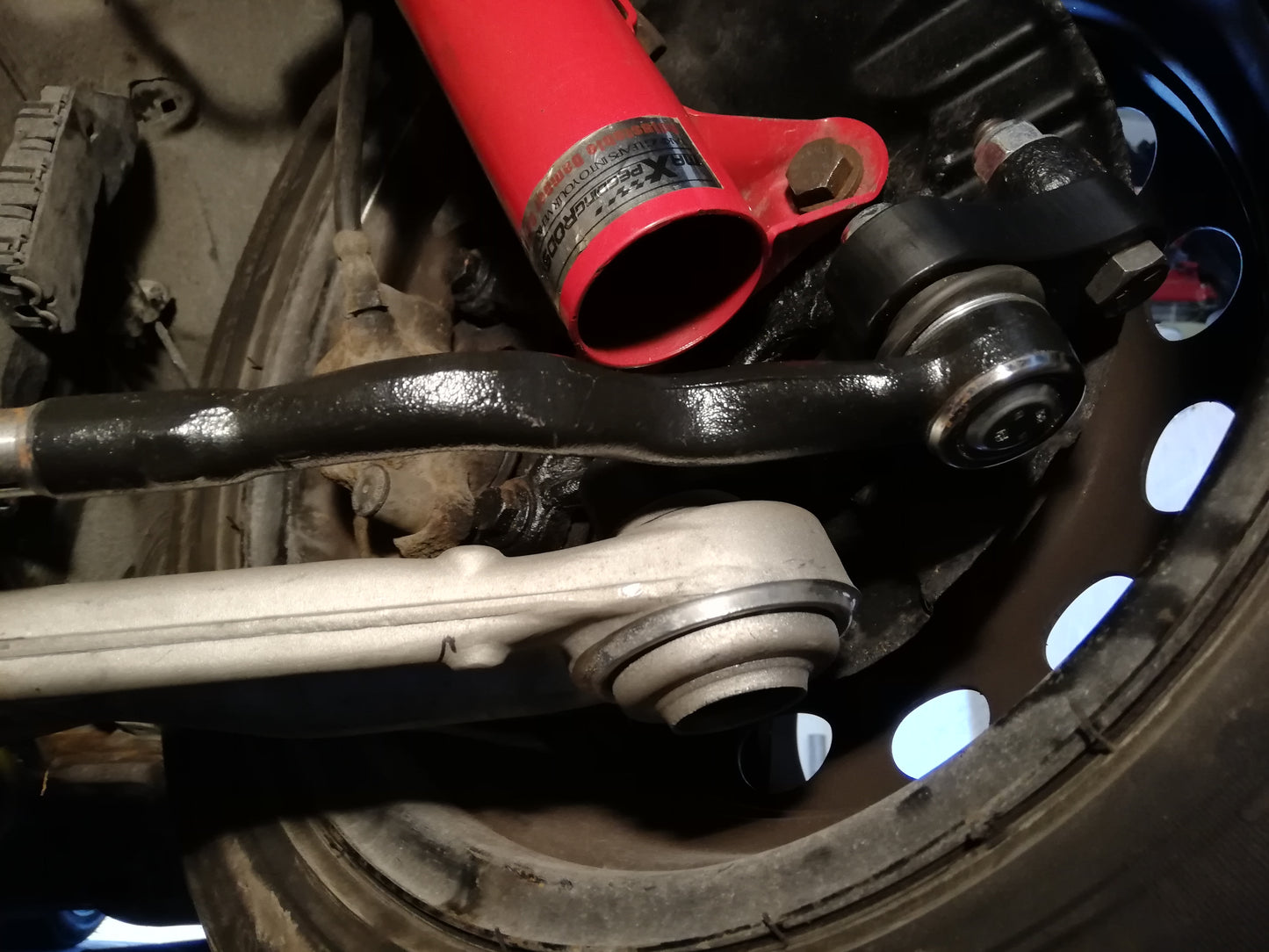

- Can be combined with e36, e46 or custom LCA's(custom LCA's might require e90 inner tie rods)
- Can be run with or without a front sway bar.

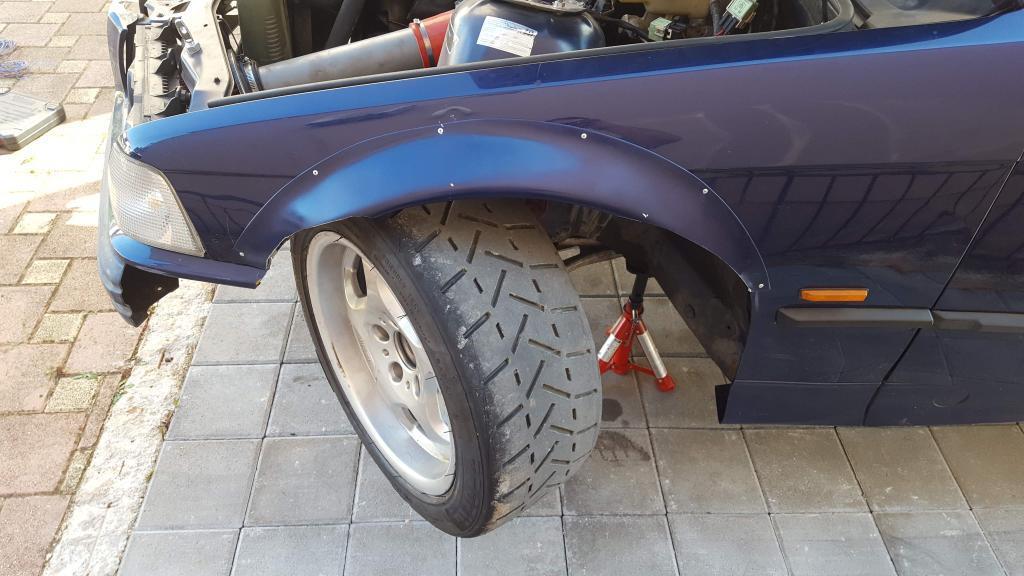

- 15inch wheels fit!

Recommended use of eccentric lolipop bushings for cabin side wheel well clearance.

Camber plates required with longer than oem LCA's.

Suggested tire sizes:

- 205/50r16 205/50r17 215/45r17 235/40r17 for lowered rideheigt
- 205/50r16 205/45r17 215/40r17 for very low rideheight

Suggested wheelsizes:

16,17inch et 30 or lower.
